What is Waterproof Fabric?

I understand waterproof fabric as a material that blocks liquid water while allowing water vapor to pass through. Engineers design this waterproof fabric to resist wetting and water penetration. The global market for waterproof fabric reached USD 2.10 billion in 2023, reflecting its critical role. I see applications for waterproof fabric in sports apparel, medical gowns, and military gear.

Key Takeaways

• Waterproof fabric stops liquid water but lets air pass through. This keeps you dry and comfortable.
• Coatings like PUL and TPU make fabrics waterproof. They also help fabrics last longer and resist damage.
• Waterproof fabrics are used in many items. These include sports clothes, medical gowns, and diapers.

Understanding Waterproof Fabric: How It Works

I begin by exploring how manufacturers make materials water-resistant. They primarily achieve this through coatings and laminates. These methods are crucial for creating a barrier against water.

Coatings and Laminates for Waterproof Fabric

When I look at coatings, I see several common types. Manufacturers often use:

• Polyester urethane (PU)
• Polyether urethane (PE)
• Silicone

Each coating material offers unique benefits and drawbacks. For instance, I find that Polyether Urethane (PE) is hydrophobic; it does not absorb water like PU. It also resists mold and mildew extremely well and shows great hydrolytic stability. However, PE is more expensive and less common than PU. It can also decrease a fabric's tear strength.

I also encounter Polyvinyl Chloride (PVC) in my research. PVC offers excellent, almost absolute water resistance, often exceeding 10,000mm hydrostatic head. It boasts exceptional durability, abrasion resistance, and longevity. PVC is also a relatively low-cost option for heavy-duty applications. On the downside, PVC is very heavy, adds significant bulk, and has poor flexibility. It is completely non-breathable, trapping condensation. I also note significant environmental concerns associated with PVC.

Coating Material	Advantages	Disadvantages
Polyether Urethane (PE)	- Hydrophobic, does not absorb water like PU. - Extremely mold and mildew-resistant. - Great hydrolytic stability, less prone to hydrolysis than PU. - Can be combined with fire retardants.	- More expensive and less common than PU. - Decreases fabric's tear strength due to reduced stretch and slippage. - Not suitable for lightweight fabrics (uncommon under 70D).
Polyvinyl Chloride (PVC)	- Excellent, essentially absolute waterproofness (HH > 10,000mm). - Exceptional durability, abrasion resistance, and longevity. - Excellent resistance to many chemicals and UV degradation. - Relatively low-cost option for heavy-duty applications.	- Very heavy, adds significant weight and bulk. - Poor flexibility, stiff fabric hand, can become brittle in cold. - Completely non-breathable, traps condensation. - Significant environmental concerns (chlorine, dioxins, plasticizers).
Durable Water Repellent (DWR)	- Preserves fabric's original breathability. - Prevents water droplets from wetting the surface, causing them to bead and roll off.	- Does not make fabric waterproof; offers minimal resistance to water penetration under pressure. - Only a surface treatment, not a coating that seals fabric pores.

Then there's Durable Water Repellent (DWR). I understand DWR is a surface treatment, not a coating that seals fabric pores. It preserves the material's original breathability. DWR causes water droplets to bead and roll off, preventing them from wetting the surface. However, DWR alone does not make a material truly impervious to water; it offers minimal resistance to water penetration under pressure.

Beyond coatings, I see laminates as another key technology. Laminates are materials with waterproof and breathable membranes bonded to them. This bonding enhances protection against water while maintaining comfort. I find these thin water-blocking layers attached to fabrics stop water from getting through but let sweat escape. This makes textiles both water-resistant and comfortable. Laminates are multi-layered textiles where a waterproof membrane is permanently bonded to a fabric layer. This ensures water resistance, wind resistance, and breathability.

I see how laminates contribute to the water-blocking properties of fabric by bonding a waterproof membrane to the fabric. This membrane, like GORE-TEX or eVent, blocks water while allowing vapor to escape. This ensures the fabric remains water-resistant yet breathable. The combination of an outer fabric for durability, the waterproof membrane, and an optional backing layer determines the fabric's overall performance. This multi-layered structure forms a tough yet flexible barrier. It makes fabrics stronger, more water-resistant, and capable of handling rough use. It also helps control temperature by allowing airflow.

I can break down the components of a laminate:

Component	Function	Examples
Outer Fabric (Face Fabric)	Provides durability and abrasion resistance	Nylon, polyester
Waterproof Membrane	Blocks water while allowing vapor to escape	GORE-TEX, eVent, PU, TPU
Backing Layer (Optional)	Adds comfort, durability, and support	Tricot knit, fleece

Hydrophilic and Hydrophobic Properties of Waterproof Fabric

Now, I turn my attention to the fundamental properties that make fabrics repel or absorb water: hydrophilic and hydrophobic characteristics.

Hydrophobic textiles repel water by altering the fabric's surface energy. This causes water droplets to bead up and roll off rather than being absorbed. Specialized coatings, often involving silicone and silane, create a protective barrier. This barrier repels water while maintaining breathability. These treatments prevent water penetration by reducing the attraction of water molecules to the fibers. They make the fabric surface less reactive to water.

I recognize silicone and silane as crucial in hydrophobic applications. Silicone is necessary for water-repellent surfaces. It protects the cloth from water while keeping it lightweight and breathable. Silane in hydrophobic applications limits water penetration while maintaining flexibility. These materials form protective coatings that resist water absorption. They enhance moisture resistance, preventing environmental wear and water damage to the fabric.

I understand water repellency, often termed 'waterproofing,' involves adding a hydrophobic compound to fabric fibers. This compound modifies the surface tension of the fibers. It reduces their reactivity and the attraction of water molecules. As a result, water forms rolling droplets on the fabric surface, similar to a lotus leaf. This prevents it from being absorbed. This process essentially reduces the fabric's ability to absorb water.

Measuring Waterproof Fabric Performance

I understand that assessing the performance of waterproof fabric involves two primary metrics. These metrics help me determine how well a material resists water penetration and how effectively it allows moisture vapor to escape.

Hydrostatic Head Rating for Waterproof Fabric

I use the hydrostatic head rating to measure a fabric's resistance to water pressure. This rating tells me the height of a column of water a fabric can withstand before water penetrates it. I express this measurement in millimeters (mm). A higher number indicates greater water resistance.

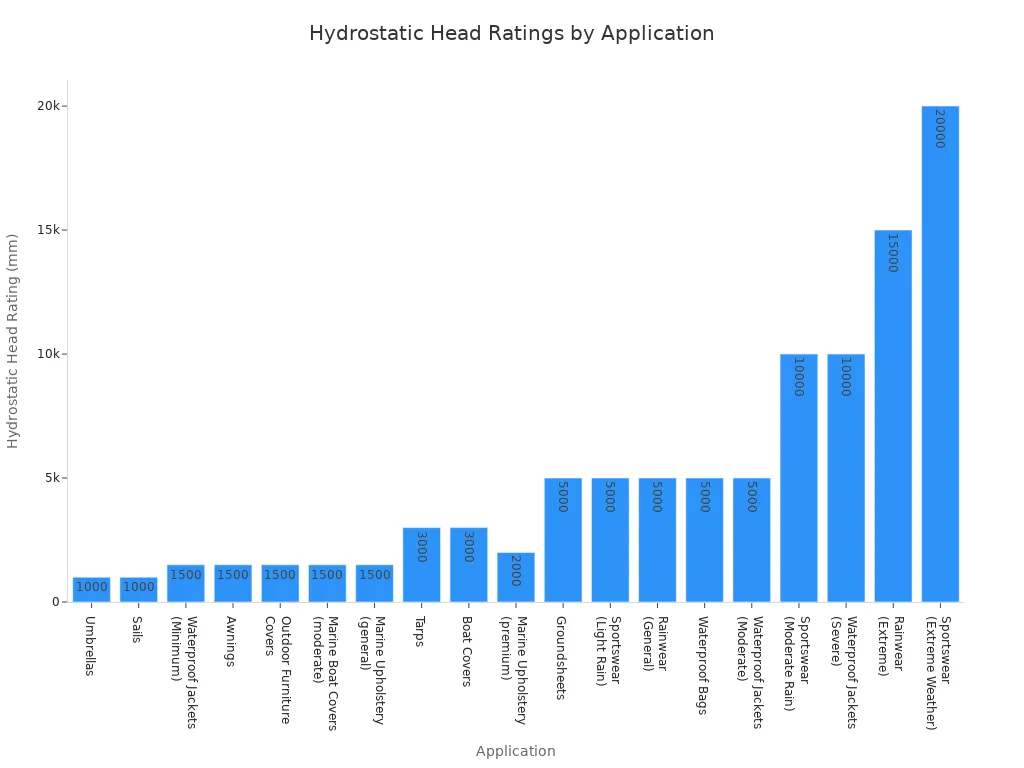

I see various applications require different levels of hydrostatic head ratings. For example, groundsheets need 5,000 mm or more, while umbrellas typically require 1,000 mm. Extreme rainwear demands 15,000 mm or higher.

I determine this rating through standardized tests. Organizations like ISO and ASTM provide methods such as ISO 811 and ASTM D751. These standards outline a clear procedure. First, I prepare the equipment and fabric samples. Then, I calibrate the device to ensure accuracy. Next, I secure the fabric sample over a test chamber. I fill the chamber with water and gradually increase the pressure. I record the pressure when water first penetrates the fabric. This height of the water column gives me the hydrostatic head score.

Moisture Vapor Transmission Rate (MVTR) for Waterproof Fabric

I also consider the Moisture Vapor Transmission Rate (MVTR). This metric measures how much water vapor passes through a fabric over a specific period. It is crucial for breathability, allowing sweat to escape and keeping me comfortable. I typically express MVTR in grams per square meter per day (g/m²/day).

I find MVTR measurements vary widely across industries. Different methods exist for measuring MVTR. For instance, the Evaporative Dish Method (BS 7209) seals a fabric over a dish of water. I then measure the weight loss over time. The Upright Cup Method (ASTM E 96-80 procedure B) uses a similar principle. Other advanced methods, like the Sweating Guarded Hot Plate Apparatus (ISO 11092 standards), simulate human skin to assess evaporative heat loss. These diverse techniques help me accurately gauge a fabric's breathability for its intended use.

Types and Applications of Waterproof Fabric

I have explored how waterproof fabric works. Now, I want to delve into specific types and their diverse applications. Understanding these materials helps me appreciate their engineering and utility.

Polyurethane Laminate (PUL) Waterproof Fabric

I often encounter Polyurethane Laminate (PUL) when discussing waterproof materials. I recognize PUL as a synthetic fabric engineered for both waterproofing and breathability. It consists of a thin thermoplastic polyurethane (TPU) film. Manufacturers thermally bond this film to a base fabric, typically polyester. This lamination process creates a lightweight, flexible material. It effectively repels moisture while allowing vapor to pass through. I see PUL as a composite fabric. It forms when a thin layer of polyurethane film, about 1 mil thick, bonds to a textile substrate. This creates a multi-layered material. It combines the base fabric's durability and stretch with the protective qualities of the polyurethane film.

I find several key characteristics define PUL:

• High Hydrophobicity: It exhibits water contact angles between 94° and 97°. This ensures effective liquid barrier performance with low hysteresis.
• Moderate Breathability: A pressure drop of 1.71 to 1.91 kPa indicates it allows moisture vapor transmission.
• Low Porosity: This property contributes to its excellent barrier qualities.
• Good Durability: I know it suits demanding environments. These often involve repeated exposure to moisture and mechanical stress.
• Selective Permeability: The polyurethane layer acts as a barrier to liquid water. It simultaneously allows moisture vapor to pass through. This makes it waterproof yet breathable. I understand this property comes from the film's molecular structure. It permits water molecules in vapor form to pass but repels liquid droplets.
• Flexibility and Conformability: Engineers design PUL for applications needing fabric-like flexibility. This distinguishes it from foams or coatings.

I observe that the manufacturing process for PUL involves lamination. Specifically, it uses thermal bonding without solvents. This method became prevalent in the early 2000s. It marked a shift from earlier solvent-based techniques. This process creates a composite fabric. It bonds a thin layer of polyurethane film to a textile substrate. I also know the effectiveness of Polyurethane Laminate Fabric depends heavily on its manufacturing process and the base fabric's quality. Production processes include rolling, casting, and lamination. Manufacturers customize these to meet specific customer needs. This material offers impressive water resistance and superior durability. I consider it safe because it is free from harmful chemicals like PVC. It is also flame-resistant. This makes it suitable for various applications, including children's clothing or bedding. The lamination process bonds a polyurethane layer onto a base fabric like polyester or nylon. This results in a strong, versatile, and tear-resistant material. It can withstand rough handling and frequent use. Additionally, I find PUL easy to clean due to its dirt and stain-repelling properties.

Beyond diapers, I see PUL in many applications:

• Reusable Snack Bags: Made with food-safe PUL, these offer a less bulky alternative to plastic containers.
• Custom Laundry Bags for Traveling: A waterproof solution to prevent wet or sweaty clothes from affecting luggage.
• Serged PUL Bibs: These offer a waterproof layer for bibs, often combined with absorbent fabric.
• Bowl Covers: Food-safe PUL covers provide a reusable alternative to plastic wrap or foil.
• Car Seat Protectors: PUL prevents liquids from soaking into car seats, which is useful for children.
• PUL Changing Pads: Easy to wipe down and waterproof, making them suitable for changing pads.
• Children’s Art Aprons: Easy to clean and available in various designs, ideal for art activities.
• Mattress Protectors: Pul Fabric creates a waterproof barrier against spills, stains, and bedwetting.
• Bags and Totes: Used for waterproof bags to keep contents dry, suitable for outdoor activities or wet items.
• Medical Products: Incorporated into surgical gowns, bed pads, and wound dressings due to its waterproof and breathable qualities.

Thermoplastic Polyurethane (TPU) Waterproof Fabric

I also frequently encounter Thermoplastic Polyurethane (TPU) in my research. I recognize TPU-coated fabric as UV stable, flexible, lightweight, and more eco-friendly than PVC. It is recyclable, non-toxic, and potentially biodegradable. The TPU coating process applies a thermoplastic polyurethane layer onto a base textile. This coating enhances fabric performance. It provides water and air resistance, increased tear and tensile strength, UV, oil, and chemical resistance. It also offers flexibility across extreme temperatures. I know TPU coatings are fully waterproof. They create an impermeable barrier against liquids and gases. This makes them suitable for applications like inflatable boats and medical mattresses. The durability of TPU coatings varies by formulation. Polyester-based TPU resists oils and fuels. Polyether-based TPU excels in high moisture and temperature environments due to its hydrolysis resistance. Polycarbonate-based TPU combines both benefits. It can last 3-5 years in harsh conditions. Manufacturers apply TPU coating via lamination, hot melt, or spread coating methods.

I understand Thermoplastic Polyurethane (TPU) as a high-performance polymer. It combines rubber's elasticity with plastic's processing advantages. It can be repeatedly melted and reshaped. It retains its original properties upon cooling. Key characteristics include high tensile strength (30-50MPa) and elongation (up to 600%). It also offers excellent elastic recovery and a broad hardness range (Shore A60 to D80). TPU boasts outstanding abrasion resistance. It is 5-10 times more wear-resistant than natural rubber. It also exhibits good resistance to oils, lubricants, many solvents, and decent weather and UV stability. It operates effectively between -40°C and 120°C. Special formulations can even reach 150°C. TPU production primarily uses either the one-shot method or the prepolymer method. The one-shot method adds all raw materials simultaneously for direct polymerization. This accounts for about 80% of production. The prepolymer method is a two-stage process. It involves prepolymer formation followed by chain extension. This allows for more precise control and high-performance products. Both methods involve the addition polymerization reaction between diisocyanate and polyol. This is followed by pelletizing, drying, and packaging. Manufacturers maintain strict control over temperature, humidity, and material ratios.

I see TPU as an eco-friendly, high-performance material. It combines the softness of rubber with the durability of hard plastics. It offers both waterproof and breathable properties. It features a broad hardness range (60HA-85HD), outstanding wear and oil resistance, transparency, and superior elasticity. As an elastomer, TPU has a glass transition temperature below room temperature. It exhibits high elongation at break and excellent recovery after deformation. TPU is an elastomer that combines rubber's elasticity with thermoplastics' moldability and recyclability. It consists of linear segmented block copolymers. Hard segments come from diisocyanate, and soft segments come from polyols. Manufacturers synthesize TPU through a reaction between diisocyanate and polyol. A chain extender facilitates the process. This allows for customization of its hardness, elasticity, and other properties.

I find TPU composite fabric is created by combining TPU film with various fabrics. This leverages the characteristics of both materials. Manufacturers produce TPU film via methods like drooling, film blowing, calendering, or coating. Key features of TPU composite fabric include a wide hardness range. It maintains elasticity and wear resistance as hardness increases. It also has high mechanical strength, offering excellent load-carrying capacity, impact resistance, and shock absorption. I note its outstanding cold resistance. It maintains elasticity and flexibility at -35°C. It also offers good processability via injection molding, extrusion, or calendering. Furthermore, it resists oil, water, and mildew. I recognize two primary methods for laminating TPU fabrics. Post-bonding involves making a TPU film first, then bonding it to the fabric. In-line lamination directly applies molten TPU to the fabric, with or without adhesive.

When I compare TPU and PUL, I notice some distinct differences. PUL fabrics tend to be bulkier and restrict airflow. This can lead to increased temperature and moisture. In contrast, TPU is soft and breathable. It provides a more comfortable fit and feel. It also helps prevent issues like bacteria growth and yeast infections that can arise from a sweaty environment.

Property	TPU Coating	PU Coating
Durability	Very strong and long-lasting	Less durable
Breathability	Highly breathable, great moisture control	Less breathable, meets lower standards

I find TPU coated fabrics are very strong and long-lasting. They resist damage from heat and moisture. They are also harder to tear than PU coated fabrics. They maintain strength even when exposed to oils or extreme temperatures. In terms of breathability, TPU fabrics are highly breathable. They allow sweat to escape effectively. This keeps the wearer dry and comfortable with moisture control between approximately 3000 to 7500 g/m²/day. While PU fabrics are breathable, they are not as effective as TPU. They often meet only the lower industry standards for breathability.

Property	Solvent-Laminated PUL	Heat-Laminated TPU-PUL
Breathability	Low	Moderate
Durability (Heat)	High—resists boiling, autoclaving	Moderate—avoid excessive heat

I see TPU fabric used in many textile industry applications:

• Bladder Applications: TPU coated fabrics are ideal for bladder-type uses. This is due to their UV resistance, extreme weather durability, abrasion and puncture resistance, and excellent air/liquid-holding capabilities when sealed. Examples include inflatable watercraft, medical applications (inflatable mattresses, splints), flexible storage tanks for various liquids, and environmental applications (oil booms, flood protection).
• Garment Applications: These fabrics are waterproof, lightweight, and flexible. This makes them suitable for dry suits, survival suits, outdoor wear, and safety wear. They offer UV resistance, chemical resistance, and protection against bodily fluids, abrasion, and puncture.
• Tensioned Fabric Applications: With excellent mechanical properties and UV resistance, TPU coated fabrics are perfect for structural strength in exposed conditions. Smaller applications include shower trolleys, stretchers, lifting bags, hyperbaric chambers, buoyancy compensators, and conveyor belts.
• Industrial Applications: The high tensile and compression strengths, weldability, and chemical resistance of TPU coated textiles allow for diverse industrial uses beyond typical fabric applications. These include antistatic oil seals, flexible ducting, bellows, curtains, pipe plugs, lifting bags, water weights, anti-decubitus air cells, and fast deployment tents.

Waterproof Fabric in Diaper Applications

When I consider diaper applications, I recognize the critical role of specialized waterproof materials. Diapers require fabrics that meet a unique set of demands.

I look for several key characteristics in diaper fabrics:

• Waterproof
• Wind-barrier
• Easy-Clean
• Readily sterilized
• Breathable
• Has some stretch
• Soft
• Flexible

PUL (Polyurethane Laminate) is a unique, waterproof material. It is also known as “thermal stretch” or “fuzzy rubber.” I see it widely used in applications like diapers. This is due to its combined waterproof and breathable properties. It offers great splash-resistance. This fabric is also easy to clean. It can be readily sterilized and is often machine washable. This makes it ideal for hygiene-sensitive products.

---

I conclude that waterproof fabric masterfully combines essential water resistance with crucial breathability. This unique characteristic proves critical for ensuring comfort and protection across a wide array of products. Furthermore, I recognize its indispensable role in effective diaper design and functionality, providing both dryness and comfort.

FAQ

What is the main difference between waterproof and water-resistant fabric?

I define waterproof fabric as completely blocking liquid water. Water-resistant fabric only repels water to a certain degree.

Why is breathability important in waterproof fabric?

I find breathability crucial. It allows moisture vapor from sweat to escape. This keeps me dry and comfortable inside the fabric.

What makes PUL fabric a good choice for diaper applications?

I choose PUL for diapers because it is waterproof and breathable. It is also easy to clean and sterilize. This makes it ideal for hygiene.
